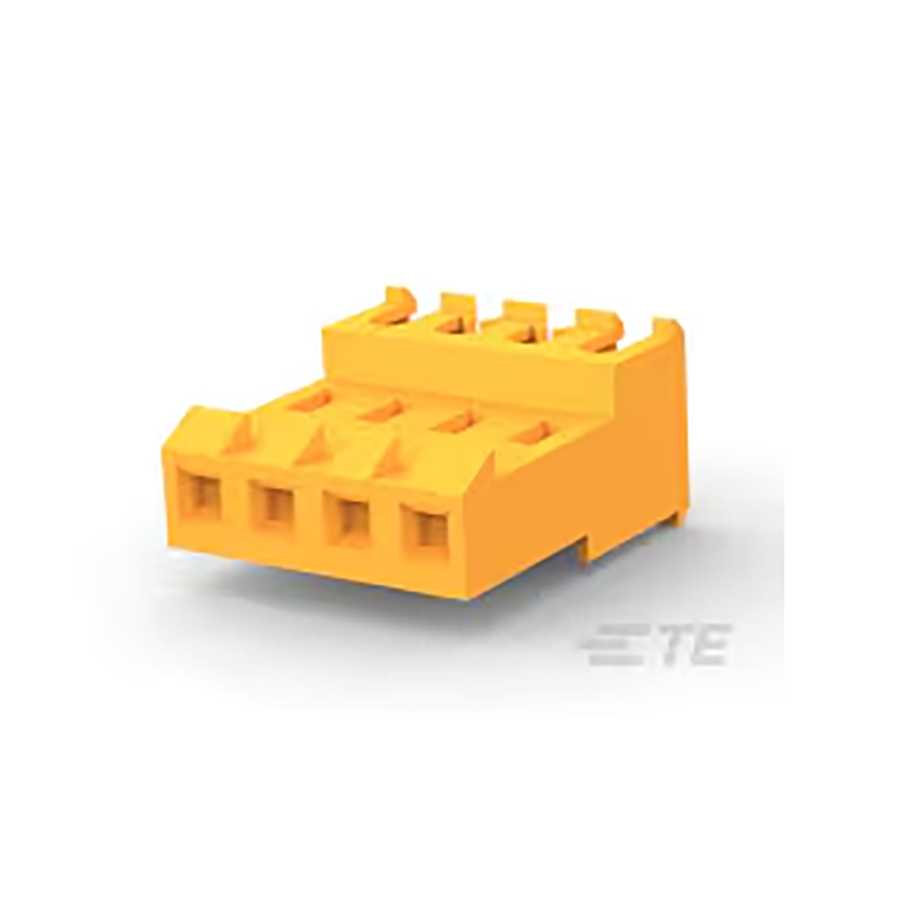

3-640599-4
Manufacturer:
TE Connectivity
Mfr.Part #:
3-640599-4
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Socket Number of Positions:4 Pitch:3.9624 mm
| Parameter | Value |
|---|---|
| Length | 15.8496 mm |
| Termination | IDC |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 600 V |
| Height | 9.78 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 9.78 mm |
| RoHS | Compliant |
| Lead Pitch | 3.96 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Pitch | 3.9624 mm |
| Current Rating | 7 A |
| Flammability Rating | UL94V-2 |
| Approvals | CSA |
| Orientation | Right Angle |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Orange |
| Gender | Receptacle |
| Number of Contacts | 4 |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 18 AWG |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Wire/Cable Type | Discrete |
| Fastening Type | Ramp |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Contact Resistance | 3 mΩ |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 7 A |
| Housing Color | Orange, White |
| Plating | Tin |
| Insulation Diameter | 2.413 mm |
| shrouded | No |
| Plating Thickness | 80 µm |
| Contact Gender | Female |
| Number of Power Positions | 4 |
| Mating Post Length | |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | With |
